Press
Everything at full resolution.
Front panel images, logo files and copy-ready text for TRUMSYNT-16. No form, no email gate. Take what you need.
Last updated 19 August 2026
The whole kit
One archive with every image, both logo formats, and the fact sheet as plain text.
The facts
- Product
- TRUMSYNT-16
- Developer
- LILJEHOLMEN DSP, Stockholm
- Type
- Drum synth and percussion sequencer plug-in
- Version
- 1.3, released 19 August 2026
- Price
- €49 including VAT
- Trial
- Free, seven days, the complete instrument
- Formats
- AU and VST3 on macOS, VST3 on Windows
- Platforms
- macOS 12 or later, Universal (Apple Silicon + Intel) / Windows 11, 64-bit
- Presets
- 13 factory presets
- Contact
- hello@liljeholmendsp.se
What's new in 1.3
Forum paste
TRUMSYNT-16 1.3 is out with improved sequencer logic:
RESET can now lock the pattern to step 1. Press RESET while stopped and the lamp stays lit, then the sequence restarts from step 1 whenever playback starts.
RUN/STOP now has clearer three-state feedback, double-click can run the sequencer without the DAW, and switching the sequencer on during playback waits until the next step.

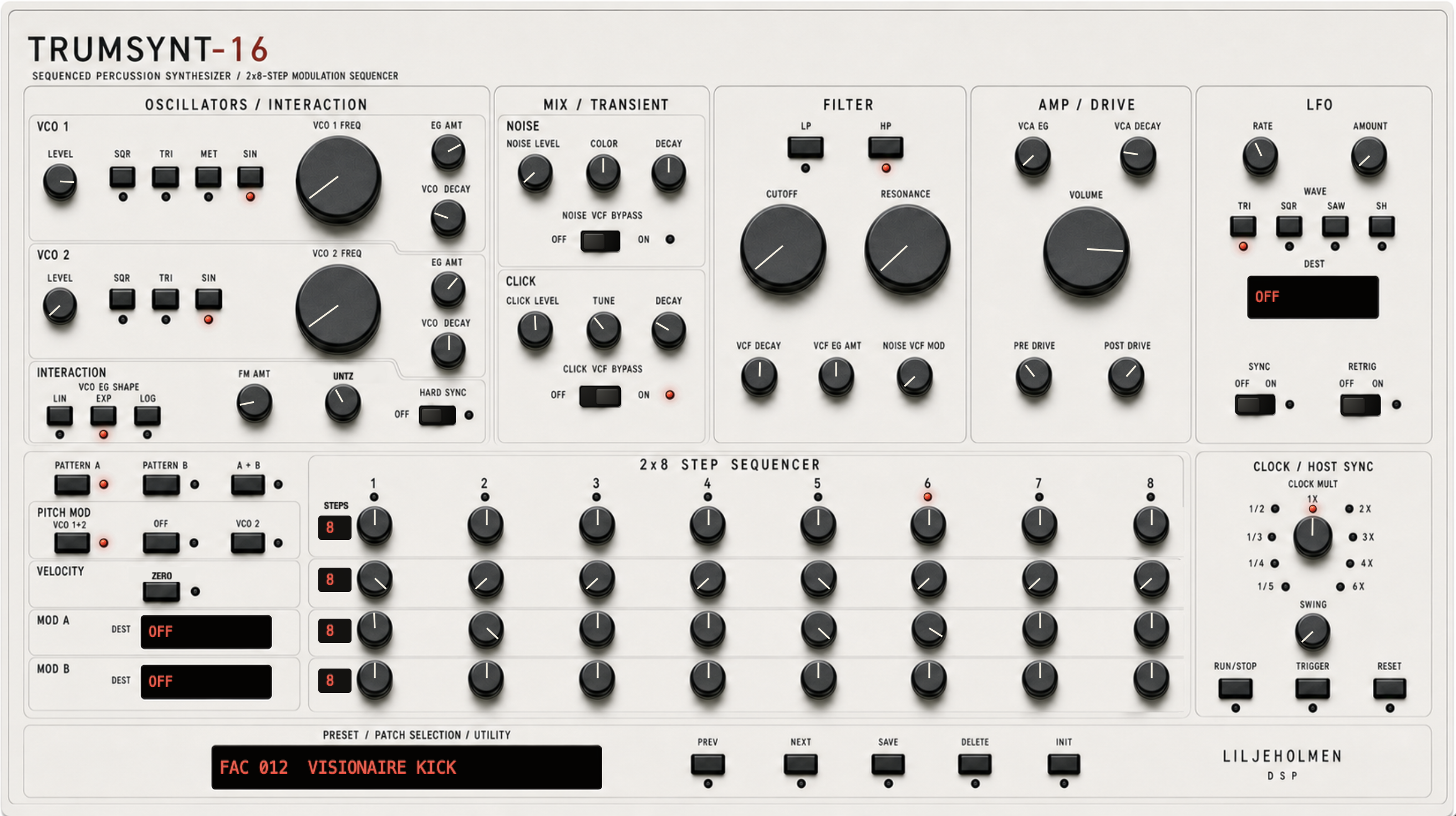

Front panel
The plug-in window, exactly as it ships. Scale and crop as you like; please do not otherwise alter it.
- trumsynt16-panel-2626.png Full resolution. Use this one for print.
- trumsynt16-panel-1920.png Web features and full-width layouts.
- trumsynt16-panel-1280.png Inline article images.
Logo
The Liljeholmen DSP mark is a panel knob. The wordmark is plain monospace type: set LILJEHOLMEN DSP in any mono face, uppercase, with wide letter-spacing.
- liljeholmen-dsp-mark.svg Transparent background. Scales to any size.
- liljeholmen-dsp-mark-paper.svg On white, for light layouts.
- liljeholmen-dsp-mark-1024.png Raster, if vector is awkward.
- liljeholmen-dsp-mark-512.png Raster, smaller.
Copy you can paste
One line
TRUMSYNT-16 is a drum synth and percussion sequencer plug-in for macOS and Windows, for sculpting and sequencing one voice at a time.
About 50 words
TRUMSYNT-16 is a drum synth and percussion sequencer for macOS and Windows, for sculpting and sequencing one voice at a time. Two oscillators, noise and click layers, switchable low-pass or high-pass filtering, drive and six decay envelopes feed a 16-step sequencer whose pitch, velocity and modulation lanes each run at their own length. Run as many instances as the track needs.
About 120 words
TRUMSYNT-16 is a drum synth, percussion sequencer and sequenced percussion synth plug-in for macOS and Windows, for sculpting and sequencing one voice at a time. Run as many instances as the track needs.
The engine pairs two oscillators with noise and click layers, a switchable HNM low-pass or Chamberlin SVF high-pass filter, tanh drive stages and six independent decay envelopes. Linear FM is anti-aliased, and the oscillator stage runs at 8x oversampling through a 31-tap FIR decimator. VCO 1 offers a METAL mode: six detuned squares at fixed non-harmonic ratios, for metallic percussion without samples.
The sequencer runs up to 16 steps across two eight-step pages, with Pitch, Velocity, Mod A and Mod B lanes at independent lengths so patterns drift against each other.
Use and review copies
These assets may be used freely in editorial coverage of TRUMSYNT-16 and LILJEHOLMEN DSP. No permission needed and no attribution required beyond naming the product.
For a review copy or an NFR license, write to hello@liljeholmendsp.se. Questions about the instrument are welcome at the same address.
